基于Freescale的MC34704多路DC電源管理方案

Freescale 公司的34704A(8路)或34704B(5路)是多路開關電源穩壓器,輸出電壓精度高達±2%,可用來管理各種多媒體應用的微處理器的電源.從單個電源輸入(2.7V-5.5V),可提供5路或8路獨立的輸出電壓.開關頻率高達2MHz,非常適合手持設備的應用.本文介紹MC34704A/B主要特性,方框圖,典型應用電路以及兩種評估板電路圖與材料清單(BOM):

Multiple Channel DC-DC Power Management IC

The 34704 is a multi-channel Power Management IC (PMIC) used to address power management needs for various multimedia application microprocessors. Its ability to provide either 5 or 8 independent output voltages with a single input power supply (2.7 and 5.5V) together with its high efficiency, make it ideal for portable devices powered up by Li-Ion/polymer batteries or for USB powered devices as well.

The 34704 is housed in a 7x7mm, Pb-free, QFN56 and is capable of operating at a switching frequency of up to 2MHz. This makes it possible to reduce external component size and to implement full space efficient power management solutions.

MC34704主要特性:

?8 DC/DC (34704A) or 5 DC/DC (34704B) switching regulators with up to ±2% output voltage accuracy

?Dynamic voltage scaling on all regulators.

?Selectable voltage mode control or current mode control on REG8

?I2C programmability

?Output under-voltage and over-voltage detection for each regulator

?Over-current limit detection and short-circuit protection for each regulator

?Thermal limit detection for each regulator, except REG7

?Integrated compensation for REG1, REG3, REG6, and REG8

?5.0μA maximum shutdown current (All regulators are off, 5.5V VIN)

?True cutoff on all of the boost and buck-boost regulators

?Pb-free packaging designated by suffix code EP

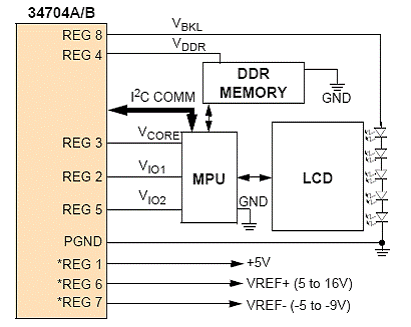

圖1.MC34704簡化應用框圖

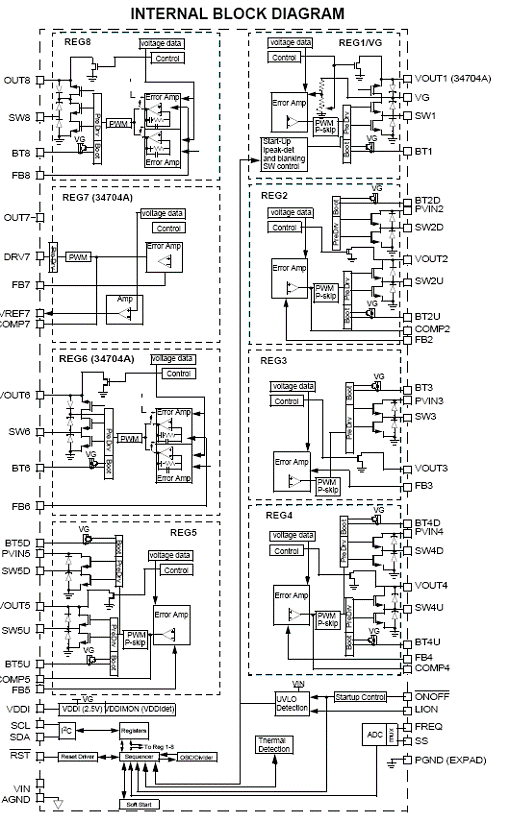

圖2.MC34704內部方框圖

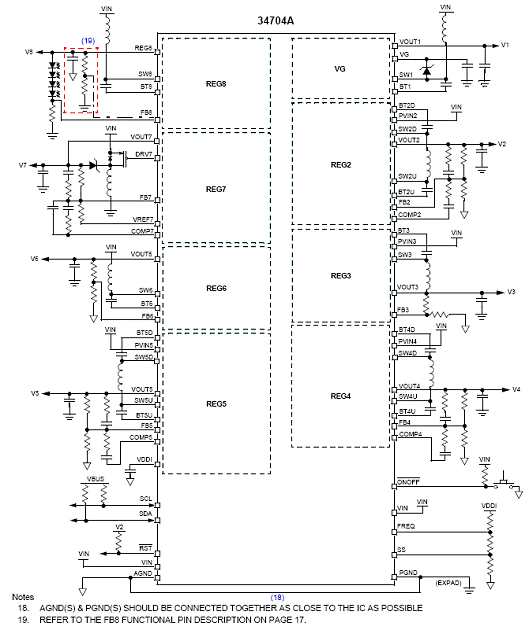

圖3.MC34704A典型應用框圖

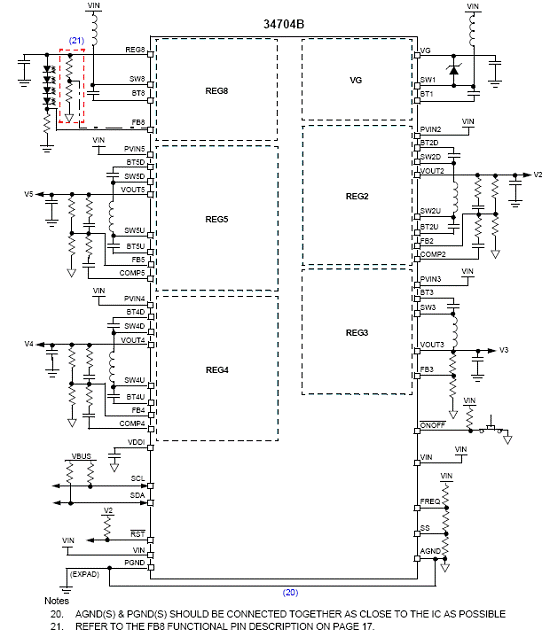

圖4.MC34704B典型應用框圖

KIT34704AEPEVBE 8路評估板


圖5.KIT34704AEPEVBE 8路評估板外形圖

This Evaluation Board demonstrates the capability of the MC34704A as a multi-channel power management IC (PMIC) meant to address power management needs for various multimedia application microprocessors. It provides 8 independent voltages through a terminal block connector for an easier out-of-the-box evaluation. A single terminal block connector for input power supply allows the user to supply the board with either a external DC power supply or a Li-Ion battery to fully evaluate the performance accordingly.

The KIT34704AEPEVBE has the ability to program the switching frequency of regulators 1 through 5 as well as the default soft start timing for all regulators during startup by changing few external components. All other features can be programmed via I2C communication using a standard 100mils 4-pin header to communicate with either the USB-I2C bridge included in this package or with any other I2C communication device preferred by the user.

KIT34704AEPEVBE 8路評估板主要特性:

?Input voltage operation range from 2.7V to 5.5V

?8 independent output voltages, accessible through terminal blocks.

?Capable to be programmed via I2C

?On/Off push button

?Programable Switching frequency for REG1-5 by changing external components

?Programable default soft start for all regulators by changing external components

?100mils 4-pin standard header connector for I2C communication

?Small Board Size (6.2cm x 6.2cm)

KIT34704AEPEVBE 8路評估板內容:

?KIT34704AEPEVBE

?KITUSBI2CEVME - USB to I2C bridge board for controlling PMIC

?USB A-B Cable

?4-pin female to female I2C communication cable

?CD34704A

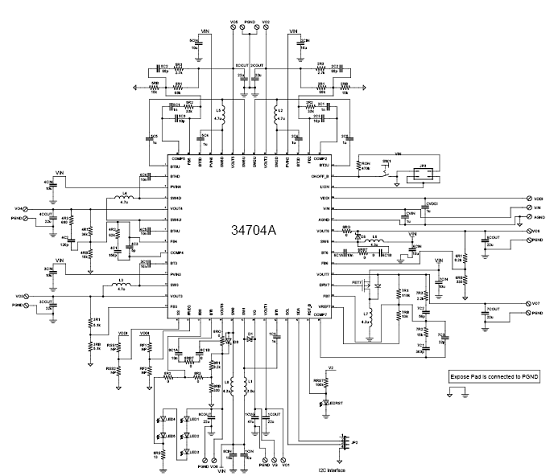

圖6.KIT34704AEPEVBE評估板電路圖

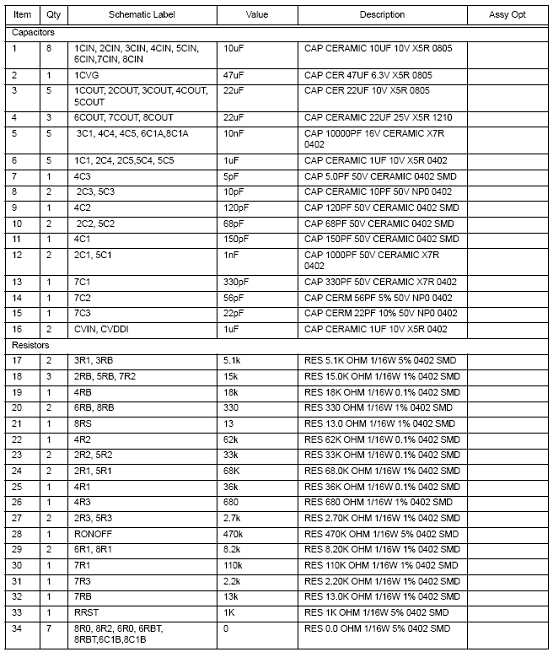

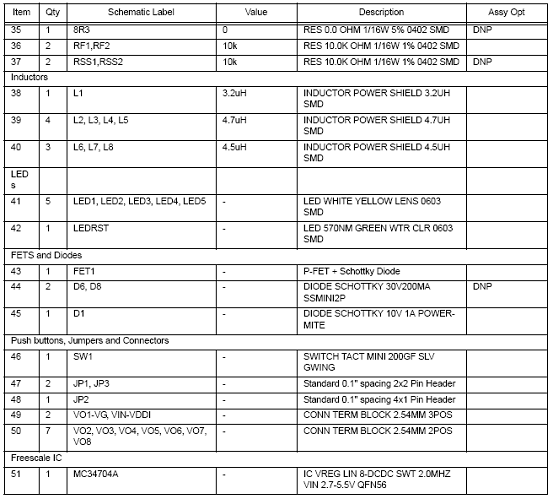

KIT34704AEPEVBE評估板材料清單(BOM):

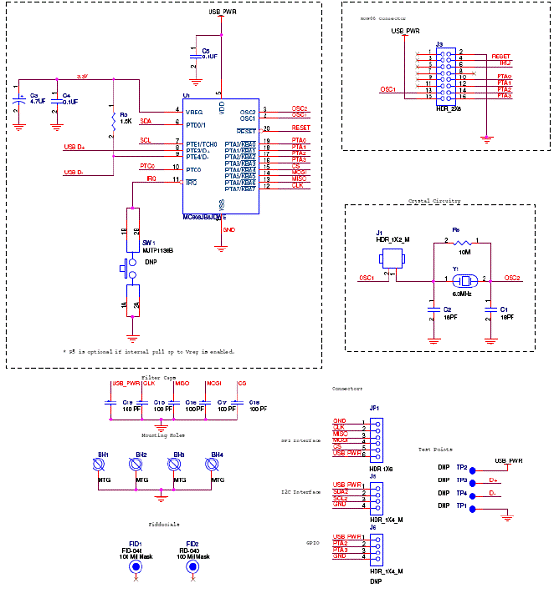

圖7.KITUSBI2CEVME電路圖(1)

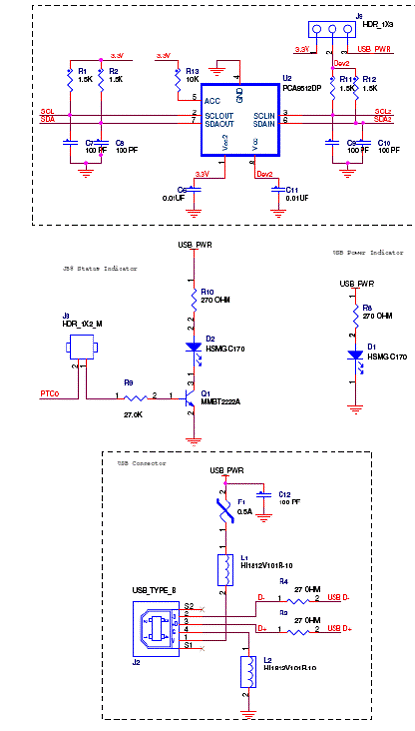

圖8.KITUSBI2CEVME電路圖(2)

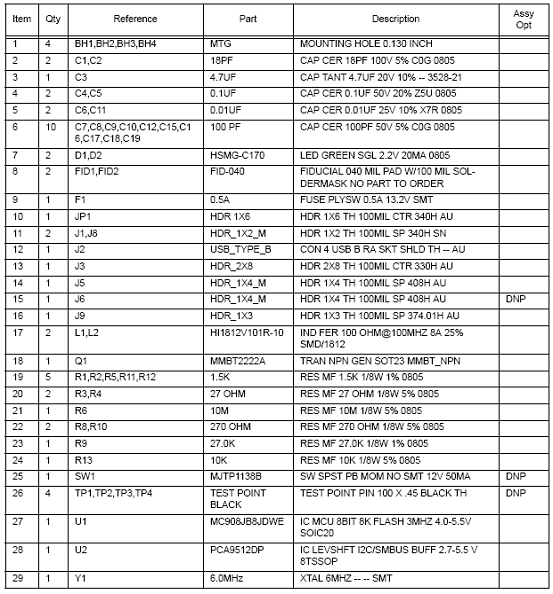

KITUSBI2CEVME材料清單(BOM):
